  2. Technical information - Product Development VA-VE

Product Development VA-VE

Product Development VA-VE

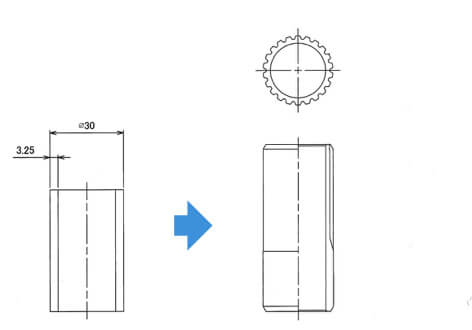

SPLINE FORMING (Outer diameter)

SPLINE FORMING(Outer diameter)

Material30φ×3.25t
Effect・Machining-less (net shape)
・As cold forming process maintains fiver flow, ends up with increased strength.

Module actual results: 0.40-1.5

SPLINE FORMING(Outer diameter) Module actual results

SPLINE FORMING (Inner diameter)

SPLINE FORMING (Inner diameter)

Material42.7φ×5.5t
Effect・Machining-less (net shape)
・Works with parts narrower than the spline diameter can also be processed

Module actual results: 0.40-1.5

SPLINE FORMING (Inner diameter) Module actual results: 0.40-1.5

Spherical surface molding

Spherical surface molding

Material30φ×3.25t
EffectWelding less, part integration

Molding of a spherical configuration by the combination of both ends of the drawing

Spherical surface molding Molding of a spherical configuration by the combination of both ends of the drawing

Profile extrusion

Profile extrusion

Material42.7φ×5.5t
EffectWelding less, part integration

No plain pipe dimension part = All parts apply plastic processing

Profile extrusion No plain pipe dimension part = All parts apply plastic processing
